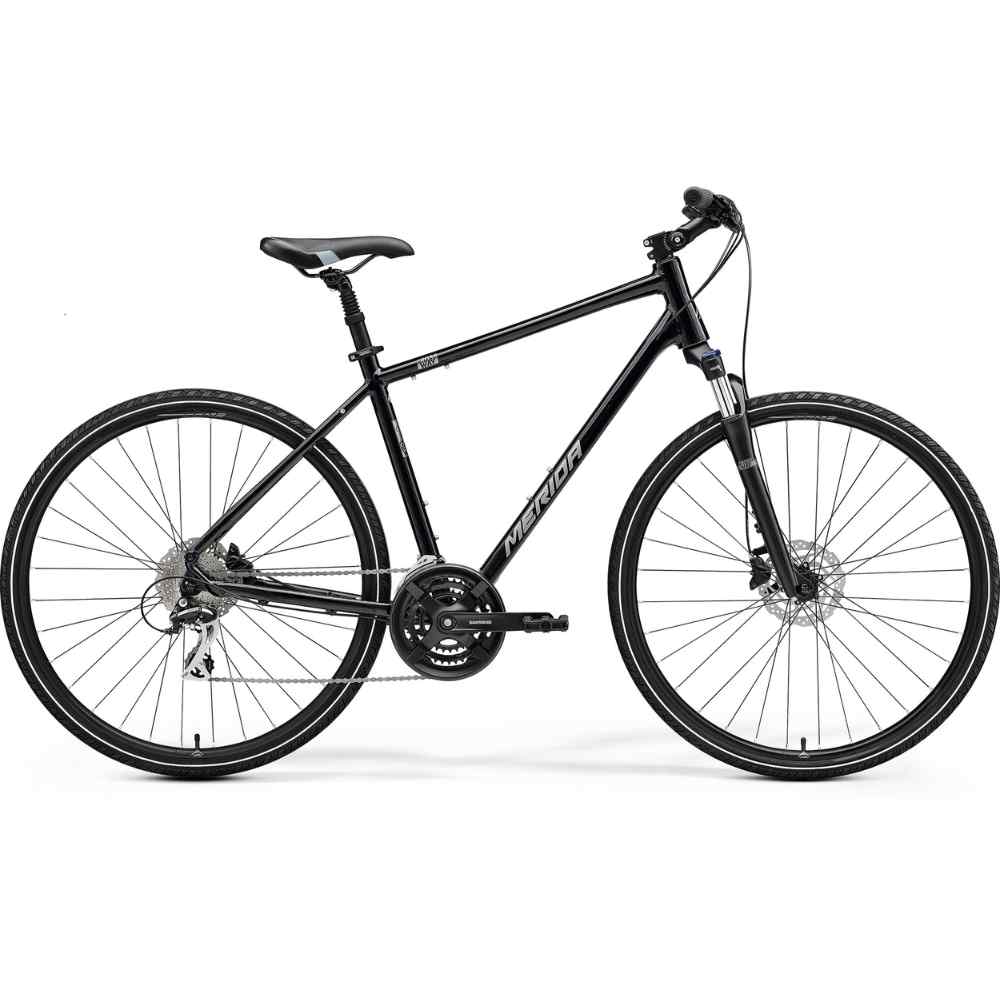

Merida Men’s Crossway 20 – S, L

A perennial best seller, versatile hybrid with 24 gears, suspension fork with lockout and powerful hydraulic disc brakes. Shimano chainset and hubs for greater longevity.*NOTE: Pick up in store only*

€730.00

SKU: P-N392

Availability: In Stock

Free 6 Week Service

Free Assembly

+353(0)719616660

call for sales & advice

free delivery

spend €50 and get free delivery

Free click & collect

buy online, collect in-store

The Crossway 20 is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting.

Merida Men’s Crossway 20 Specifications:

Frame	TFS II 6061 double butted technoformed aluminium tubing with internal cable routing Tapered head tube Inboard disc mounts BSA BB standard 135 x 9mm QR axle standard Mounts for rack Mudguards and kickstand Max. tyre size 700 x 50c
Fork	Suntour NEX HLO; Coil; 63mm travel; Lockout. Max. tyre size: 700 x 50c
Headset	Merida M2340
Stem	Merida TK; aluminium; 25.4mm diameter; adjustable – Stem length: 100mm (all sizes)
Handlebar	Merida CC; aluminium; 660mm wide; 25mm rise
Grip	Merida EC
Brake Type	Hydraulic disc
Brake Lever	Shimano ST-EF505
Brake Callipers	Front: Shimano BR-MT200; 2 piston hydraulic disc brake calliper with Shimano RT10; 160 mm rotor Rear: Shimano BR-MT200 hydraulic disc brake calliper with Shimano RT10; 160mm rotor
Tyres	Front: Merida K1171; 700x40C; wire bead Rear: Merida K1171; 700x40C; wire bead
Wheel Size	700c
Wheels	Rims: Merida CC; 17mm inner rim width; aluminium Spokes: Black steel Front Hub: Shimano TX505; 100x9mm wide; 32 spoke holes; Centre lock Rear Hub: Shimano TX505; 135x9mm wide; 32 spokes; Centre lock
Speeds	24
Front Derailleur	Shimano FD-TY710
Rear Derailleur	Shimano RD-M359
Chain	Sunrace M84
Cassette	Sunrace CSM558AU; 11-32 teeth; 8 speed
Chainset	Shimano TY301; 48-38-28 tooth chainset. Crank length: 170mm (S), 175mm (M,L)
Bottom Bracket	FSA TH-7420ST-W, Cartridge Bearing
Pedals	VP Components, VPE-891
Saddle	Merida Cross Sport
Seat Post	Merida TK; 30.9mm diameter; 13mm setback; 40mm seatpost suspension travel

Features:

Geometry:

Frame Size	S	L
Tyre Sizes	28″	28″
St Seat Tubes mm	470	550
Tt Top Tubes mm	580	610
Cs Chain Stays mm	460	460
HTA head tube angle [°]	71	71.5
STA seat tube angle [°]	73.5	73
Bd Bottom Bracket Drops mm	70	70
Ht Head Tube Lengths mm	140	175
Fl Fork Lengths mm	468	468
R Reach mm	393	406
S Stacks mm	631	667
Wb Wheel Base mm	1085	1104
Sh Stand Over Height mm	748	817
