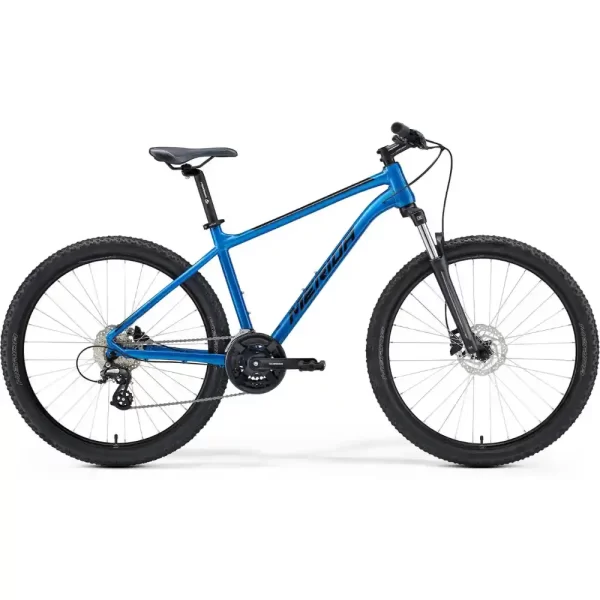

The larger wheels on the Merida Big.Seven 15 Mountain Bike combined with the 100 mm suspension fork offer additional comfort and control, and the chosen components help tackle your next off-road adventure.
The Merida Big.Seven 15 Mountain Bike Specifications:
- FRAME:Â BIG.SEVEN SPEED
- FRAME SIZE: L
- COLOR:Â BLUE (BLACK)
- FORK:Â SR Suntour XCT30
- BRAKES:Â Power DS100
- ROTORS:Â Shimano RT10
- HEADSET:Â FSA NO.10
- HANDLEBAR:Â MERIDA CC
- HANDLEBAR STEM:Â MERIDA CC
- GRIP:Â MERIDA EC
- DERAILLEUR (F):Â Shimano FD-TY700
- DERAILLEUR (R):Â Shimano RD-M310
- SHIFTERS:Â Micro Shift TS39-L / Micro Shift TS39-8R
- SEAT POST:Â MERIDA CC
- SEAT CLAMP:Â MERIDA COMP QR
- SADDLE:Â MERIDA SPORT COMFORT
- PEDAL:Â VP VPE-891
- CHAIN:Â SUNRACE M84
- CRANK:Â Shimano TY301
- FREEWHEEL:Â SUNRACE CSM668
- BOTTOM BRACKET:Â FSA TH-7420ST-W, CARTRIDGE BEARING
- HUBS:Â Shimano TX505
- RIM:Â MERIDA CC
- TYRE FRONT:Â MERIDA K1080
- TYRE REAR:Â MERIDA K1080
- SPOKES:Â Black steel
- MAX. WEIGHT:Â 135 kgÂ
Features:
- Double butted aluminium frame with 27.5″ wheels
- Less aggressive and more upright geometry for maximum control and comfort
- Suntour 100 mm travel suspension fork
- Shimano 8-speed drivetrain with triple chainring setup
- Hydraulic disc brakes
Geometries:
| Frame Size |
L |
| Tyre Sizes |
27.5″ |
| ST seat tube [mm] |
470 |
| TT top tube [mm] |
585 |
| CS chain stay length [mm] |
430 |
| HTA head tube angle [°] |
70.5 |
| STA seat tube angle [°] |
73 |
| BD bottom bracket drop [mm] |
53 |
| HT head tube [mm] |
125 |
| FL fork length [mm] |
490 |
| R reach [mm] |
396 |
| S stack [mm] |
619 |
| WB wheel base [mm] |
1068 |
| SH stand over height [mm] |
764 |
